Kalyna 4: protection against FPV drones
The modern world faces new security challenges, including the use of FPV drones. To help protect against this threat, Aeromash-Bud offers an innovative portable device: the EW-3 jammer. This article describes the device's key features and advantages.

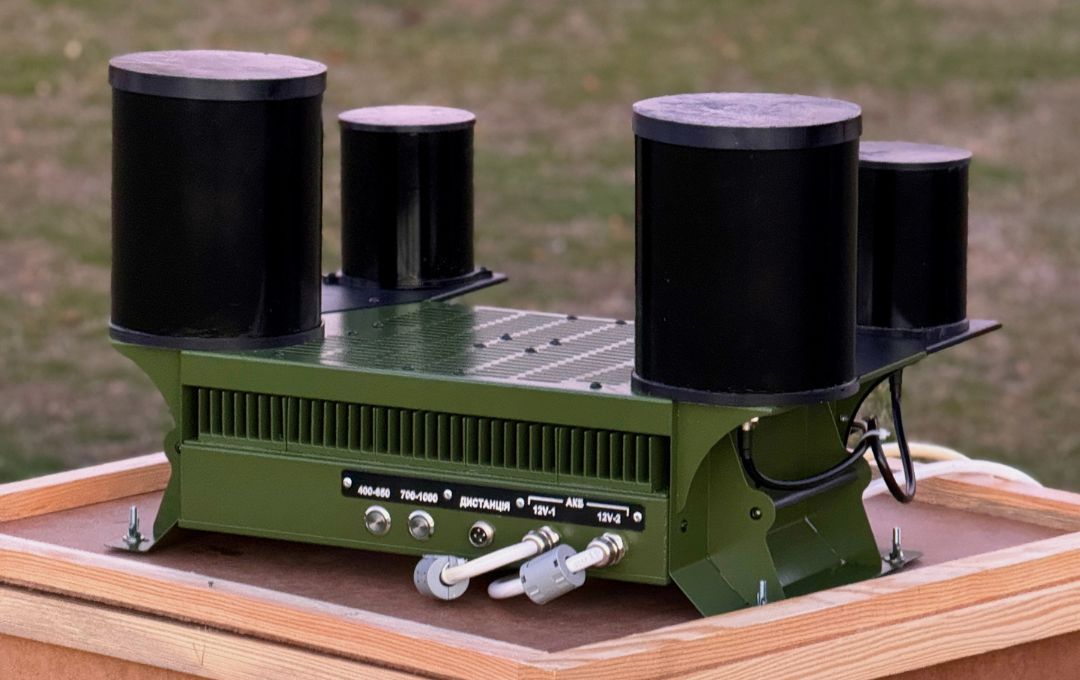

What is the EW-3 jammer?
The EW-3 jammer is an advanced device designed to counter FPV drones operating in the following radio-frequency bands:
- 400–500 MHz;
- 700–850 MHz;
- 850–1,000 MHz.
The system generates electromagnetic noise that blocks control signals between the operator and the unmanned aircraft, making the drone uncontrollable.
Key technical specifications
Operating bands and power:
- Total output power: 150 W (50 W per channel).
- Electromagnetic noise spectrum: 400–500 MHz, 700–850 MHz, 850–1,000 MHz.
- Jamming radius: From 3,000 m to 250 m depending on the distance between the operator and the drone.
Efficiency and response:
- Time to operation after switching on: 0.5 seconds.
- Noise type: White noise with a quality factor of 0.8.
Power supply and consumption:
- Supply voltage: 9–16 V.
- Supply current: Up to 25 A.
- Can be connected to a standard 12 V vehicle battery.

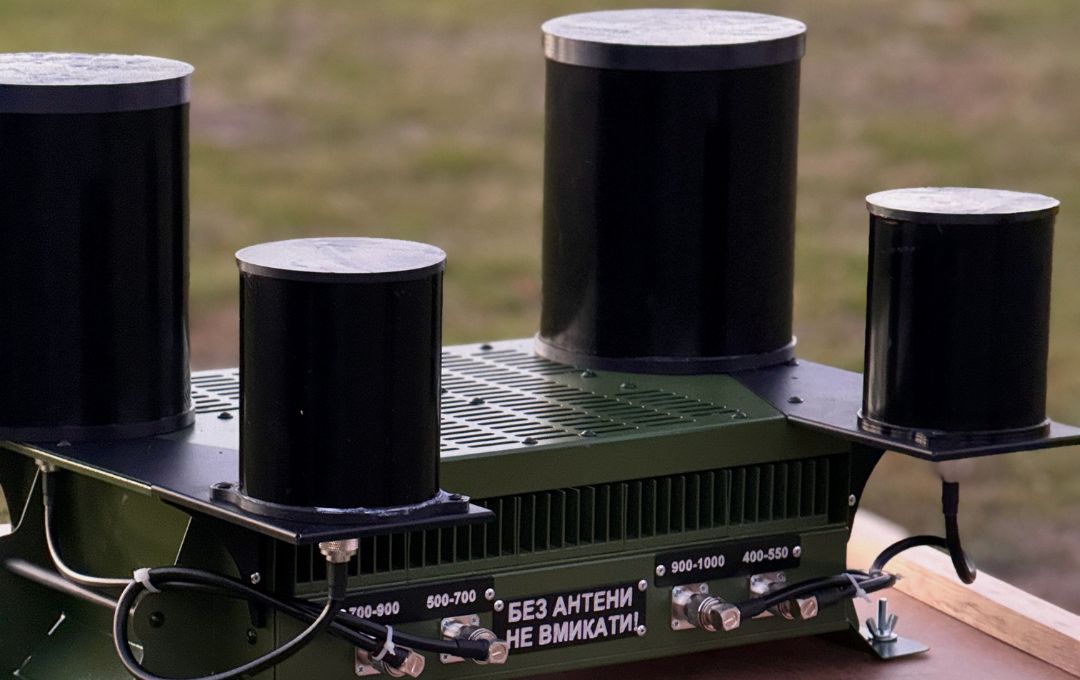

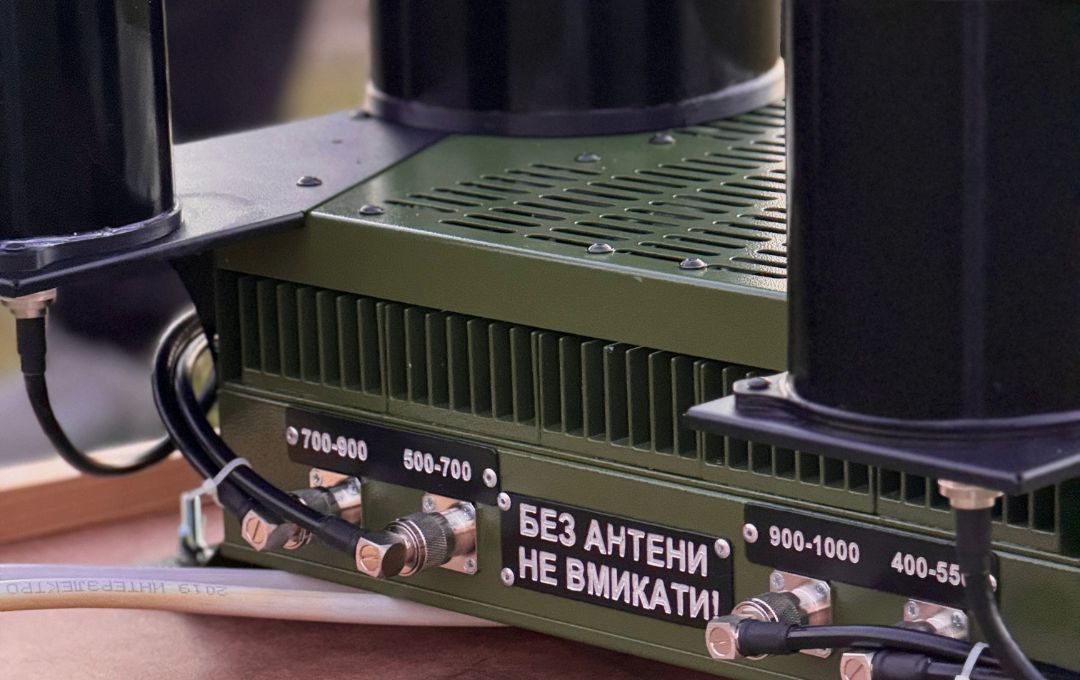

Antennas:
- Radiation pattern: 360 degrees.
- Type: Dome-type antennas.
Mobility and remote control:
- Weight without battery: 3 kg.
- Remote control with a cable length of 4 m (other lengths available on request).
Advantages of the EW-3
- Versatility: The device can be mounted on a vehicle roof to provide mobile protection.
- Easy integration: Straightforward connection to a standard vehicle battery.
- Efficiency: Low power consumption helps preserve battery charge.
- Rapid activation: The device is ready to operate within 0.5 seconds of being switched on.
- Reliability: Built-in protection against deep battery discharge.
Where to buy the EW-3 jammer
The company Aeromash-Bud offers the EW-3 jammer on favourable terms. Additional batteries and chargers are also available. For advice or orders, use the contact details on our website.
Conclusion
The EW-3 jammer is a reliable solution for protection against FPV drones, combining effectiveness, mobility and ease of use. Contact us about modern equipment for your security needs.
